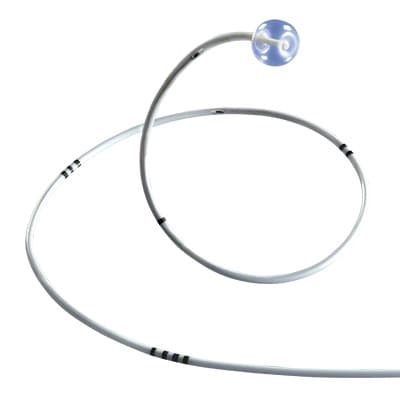

Right heart catheter for hemodynamic pressure measurement and for measuring cardiac output.
Productline Corodyn
- Corodyn P1 (balloon flood catheter with distal lumen)
- Corodyn P2 (balloon float catheter with two lumens for simultaneous pressure measurement or infusion and medication administration)
- Corodyn TD (four-lumen thermodilution catheter with one lumen for pressure measurement, one lumen for cold bolus delivery, thermistor and balloon lumen)
- Corodyn TDI (five-lumen thermodilution catheter with an additional lumen for simultaneous pressure measurement or infusion and medication administration)
- Corodyn touch free (catheter with pre-assembled "touch free" protective film tube)
Features Corodyn P and TD
- Catheter length 110 cm
- Markings every 100 mm from the catheter tip for exact catheter positioning
- Made from PUR
- Different sizes (5 F - 7.5 F) available
Features Corodyn TD und TDI
- Thermodilution catheter for measuring cardiac output
- Thermistor 3.5 cm from the catheter tip
- 3-pin Special plug for connection to all standard computers and patient monitors
