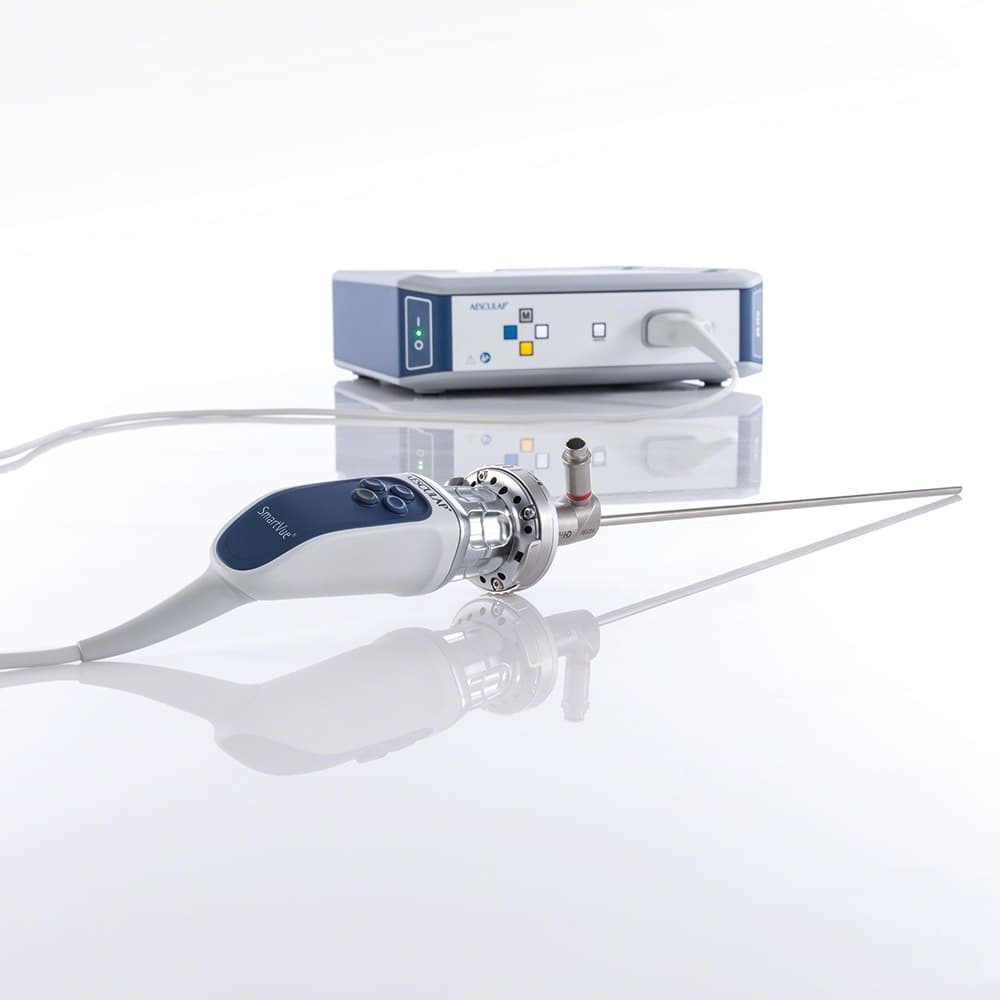

SmartVue® 2D Camera Platform
Produces true to life images
CMOS chip technology produces true to life Images
4k image visualization in combination with 2D 4K monitor
Three different 2D camera heads allow a wide range of applications
Optical parfocal zoom lens with 2x magnification for detail magnification
Multiple camera functions can be activated via the remote control buttons on the camera head
Special modes support the camera settings for the respective indication
Progressive scan technology provides a delay-free monitor image
The 16:9 aspect ratio expands the field of view and allows earlier recognition of instruments
Camera head design supports fatigue-free operation
Integrated bus system controls activation / standby function of the LED light source from the sterile area
Easy to use locking mechanism for fixing the endoscope in the desired position
