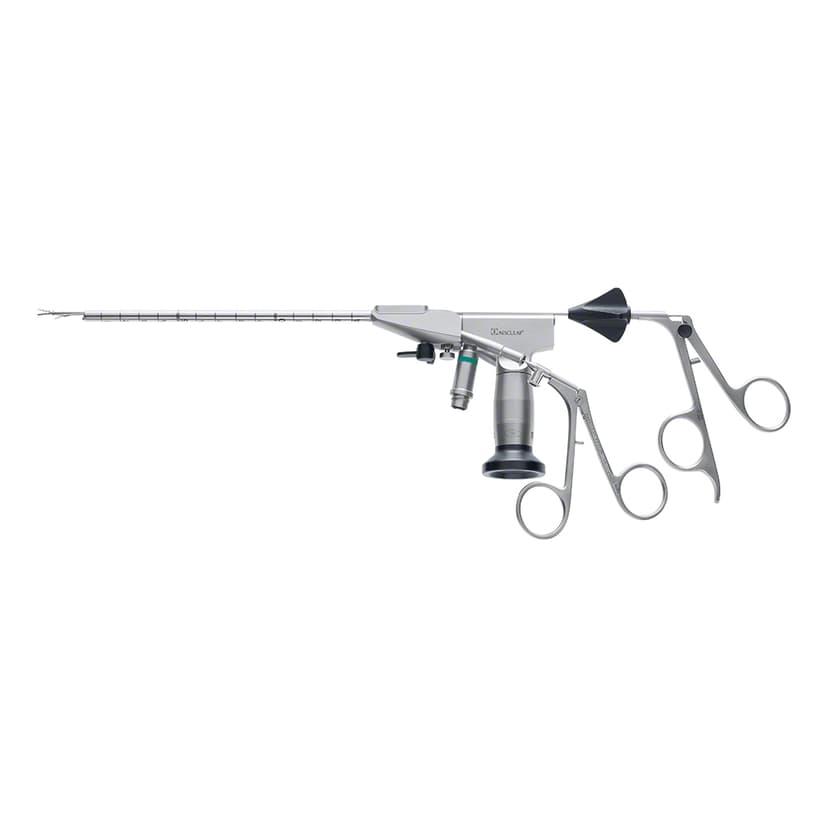

Intraventricular Neuroendoscopic System for Minimally Invasive Neuroendoscopic Operation
MINOP® is an intraventricular neuroendosopic system designed primarily for the treatment of intraventricular indications such as occlusive hydrocephalus and the removal of tumors and cysts.
Benefits
Modular, sophisticated design
Trocar with rounded tip for less traumatic insertion into the brain
Large depth scale for safer positioning and better control inside the ventricles
Optimized optical components leading to an enlarged image area, higher image quality, brightness and contrast
Angled design for enhanced instrument maneuverability
Features:
Trocar with
Attachment for connection of peripheral devices
Additional single obturator for the working channel for insertion under visual control, with the 0° endoscope
Full HD compatible endoscopes with different directions of view (0° and 30°)
Special micro instruments
Detachable tube shaft instruments with tactile feedback and rotatable instrument tip for improved control and enhanced handling and precision

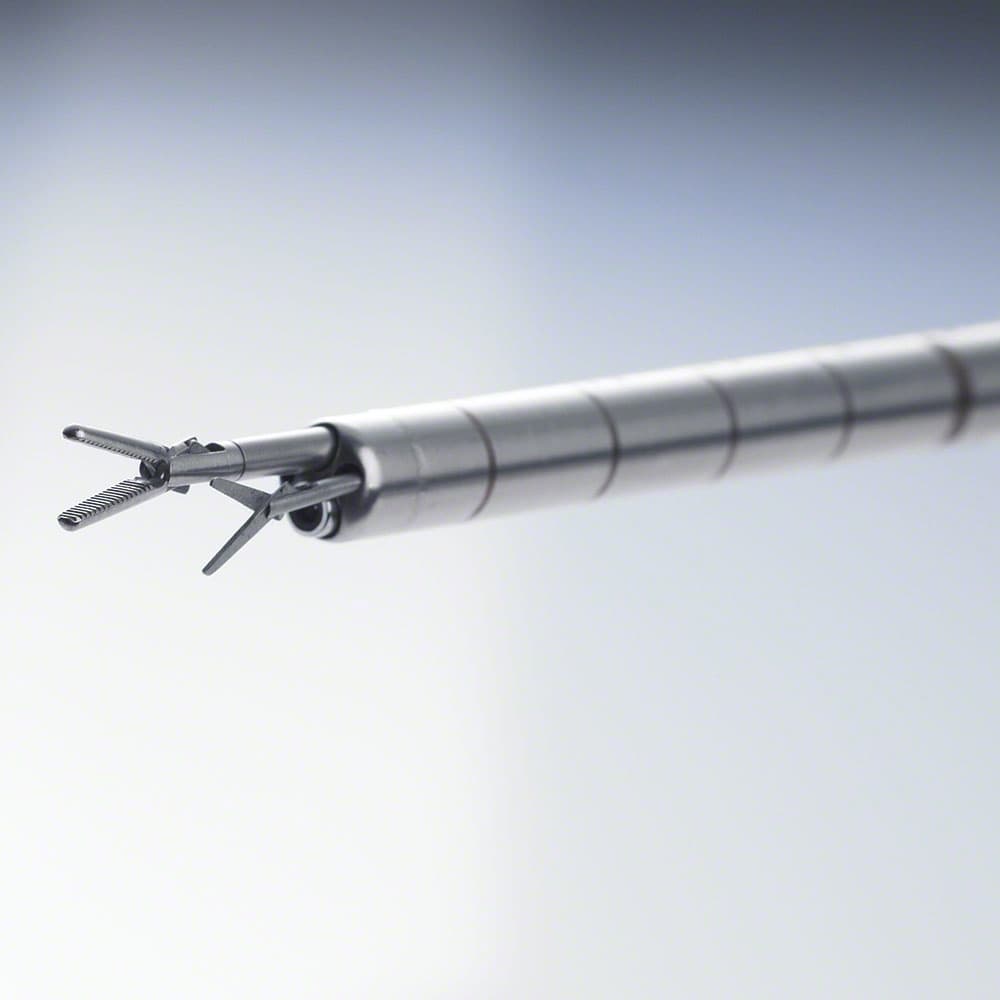

Flexible instruments for bi-instrumental working (with both hands)
Monopolar and bipolar electrodes
Single-use suction cannulas
Additional information:
Single-use introducer for preserving the brain in case of repeated insertion and withdrawal of the endoscopic system during an operation
